Used 150 tpd Float Glass Plant for Sale, Middle East

A complete 150 tonne per day (net) float glass plant is available for sale in the Middle East. It was last in production one year ago. Tahir Jamal Khawaja MIET of TJK Industrial can dismantle, transport, reassemble and start it up for the buyer.

Plant equipment

Zippe batch plant
Outokumpu sand beneficiation plant
600 ton melting furnace, with French refractory and American steel
Tin bath from Stewart USA
CNUD annealing lehr
Grenzebach cutting line
Linde nitrogen plant

Specification

Capacity: 150 tonnes per day (net)
Glass thickness: 1.8 mm to 12 mm
Net ribbon width: 2200 mm
Last in production: one year ago
Location: Middle East
Suited to African markets with small production requirements

Photographs

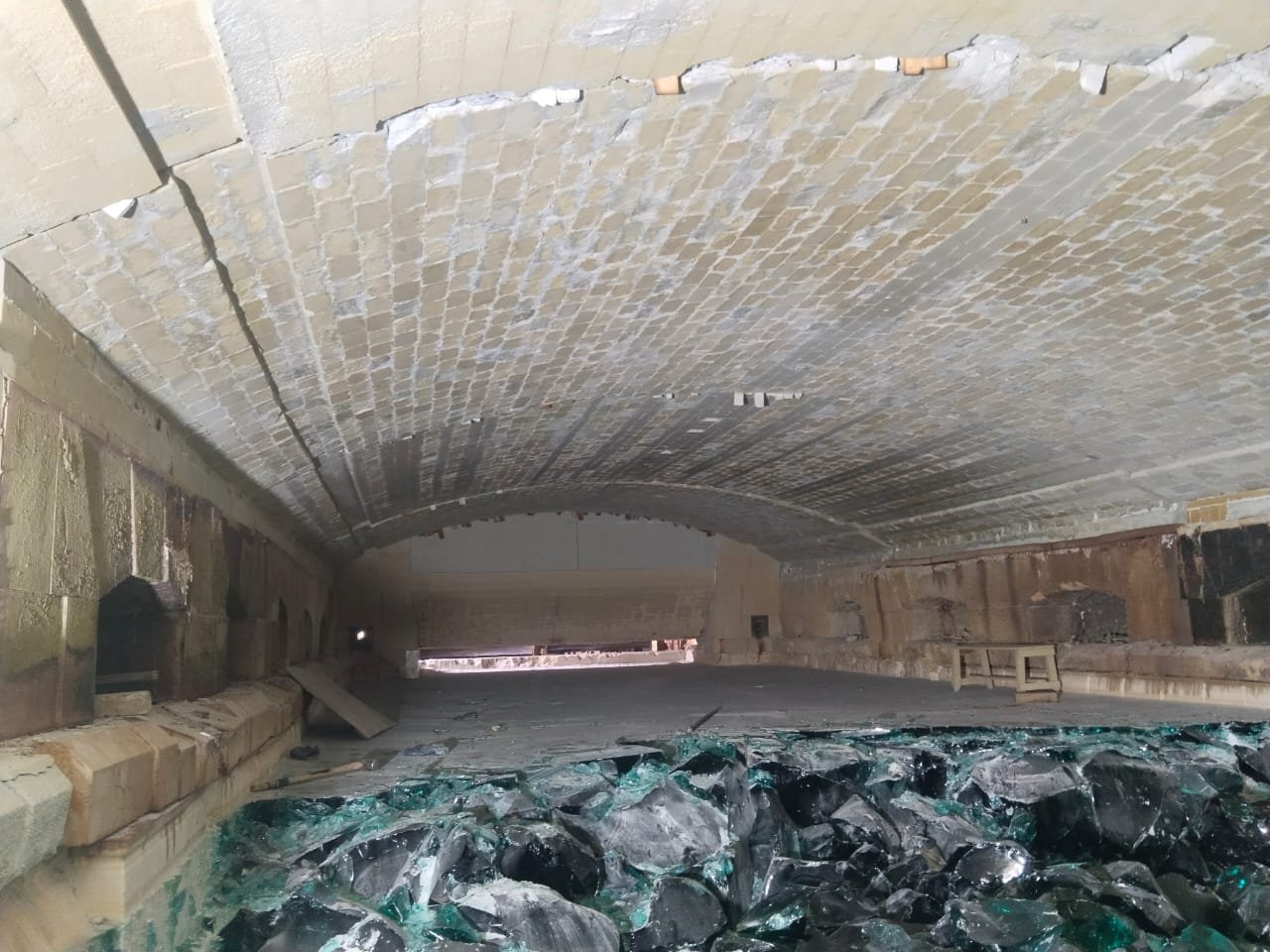

Inside the 600 ton melting furnace of the 150 tonne per day float glass plant, looking along the crown, with cullet on the furnace floor — Melting furnace interior, looking along the crown

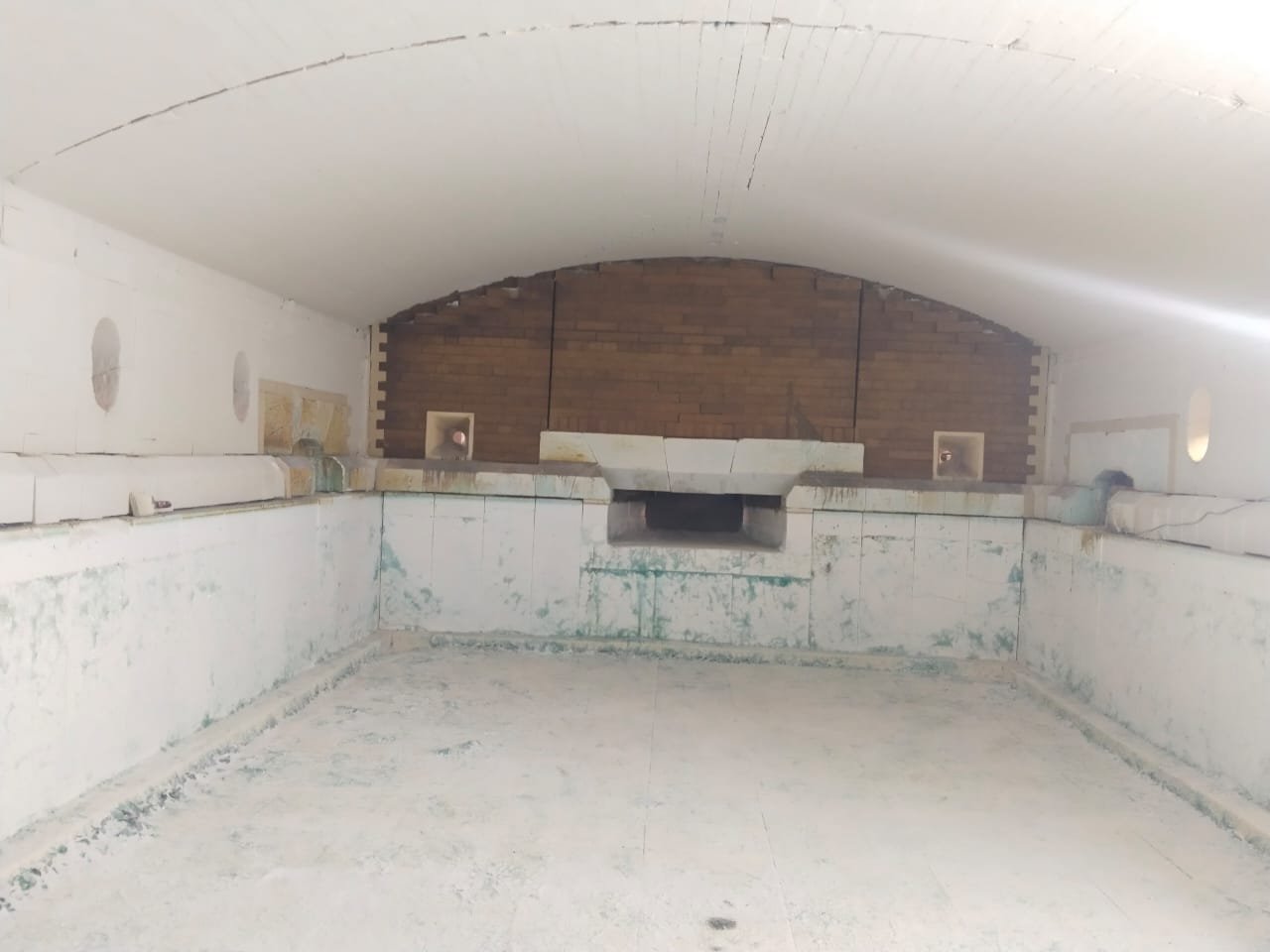

Working end of the melting furnace, refractory-lined chamber, float glass plant for sale — Working end of the melting furnace

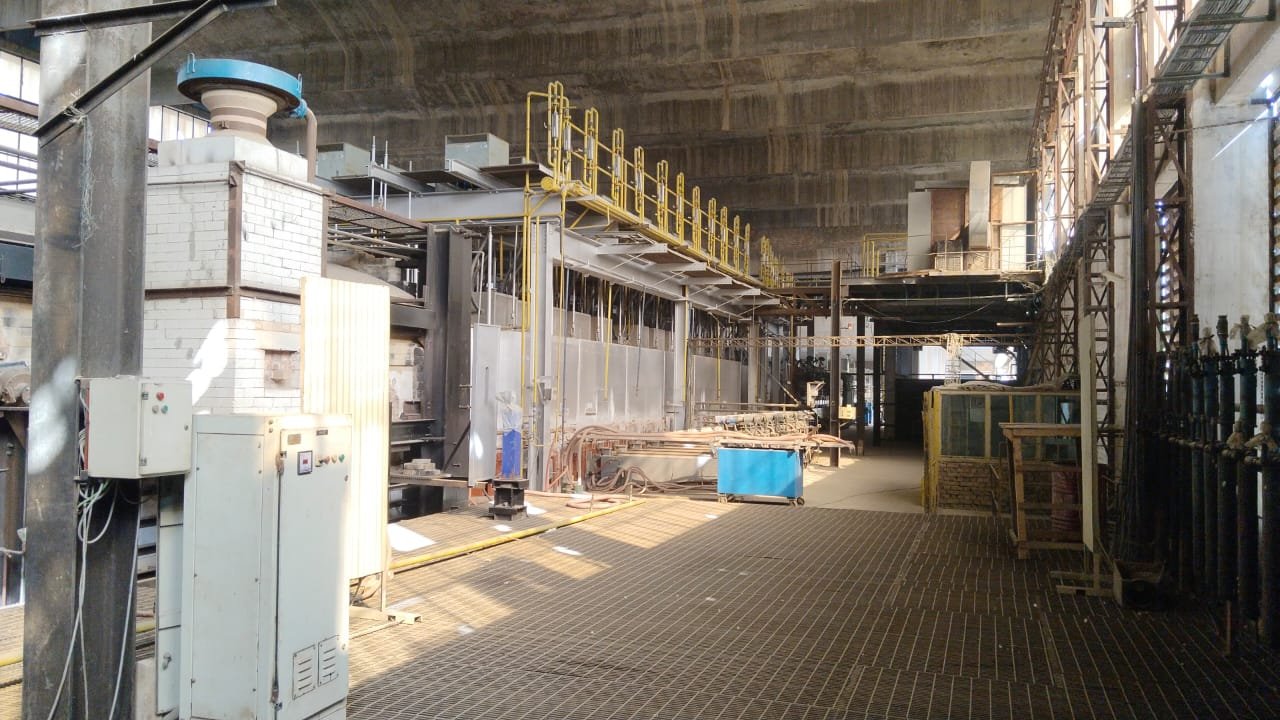

Tin bath from Stewart USA and hot end hall of the used float glass plant — Tin bath (Stewart USA), hot end of the line

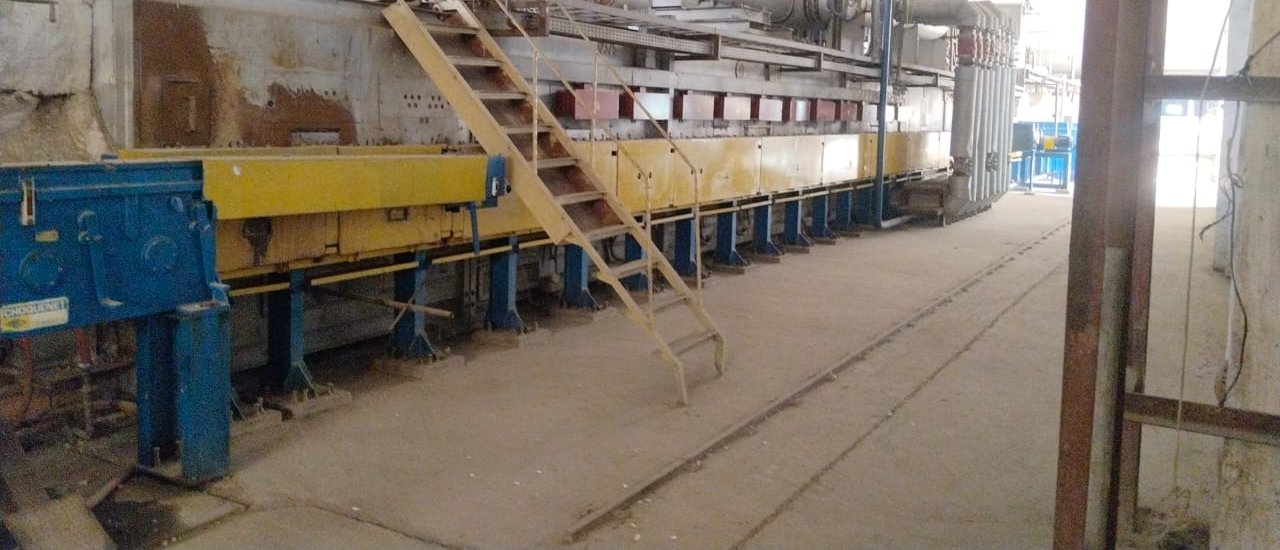

CNUD annealing lehr of the used 150 tonne per day float glass plant — CNUD annealing lehr

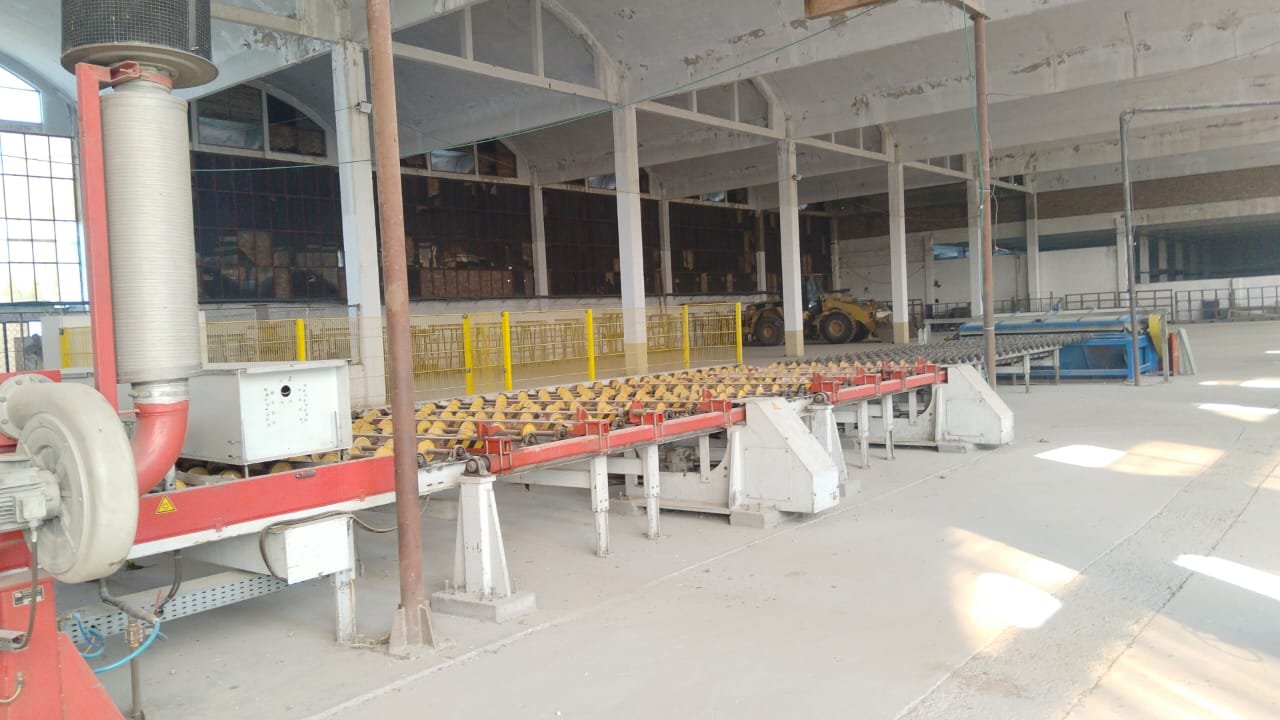

Cold end roller conveyor in the cutting hall of the float glass plant — Cold end roller conveyor

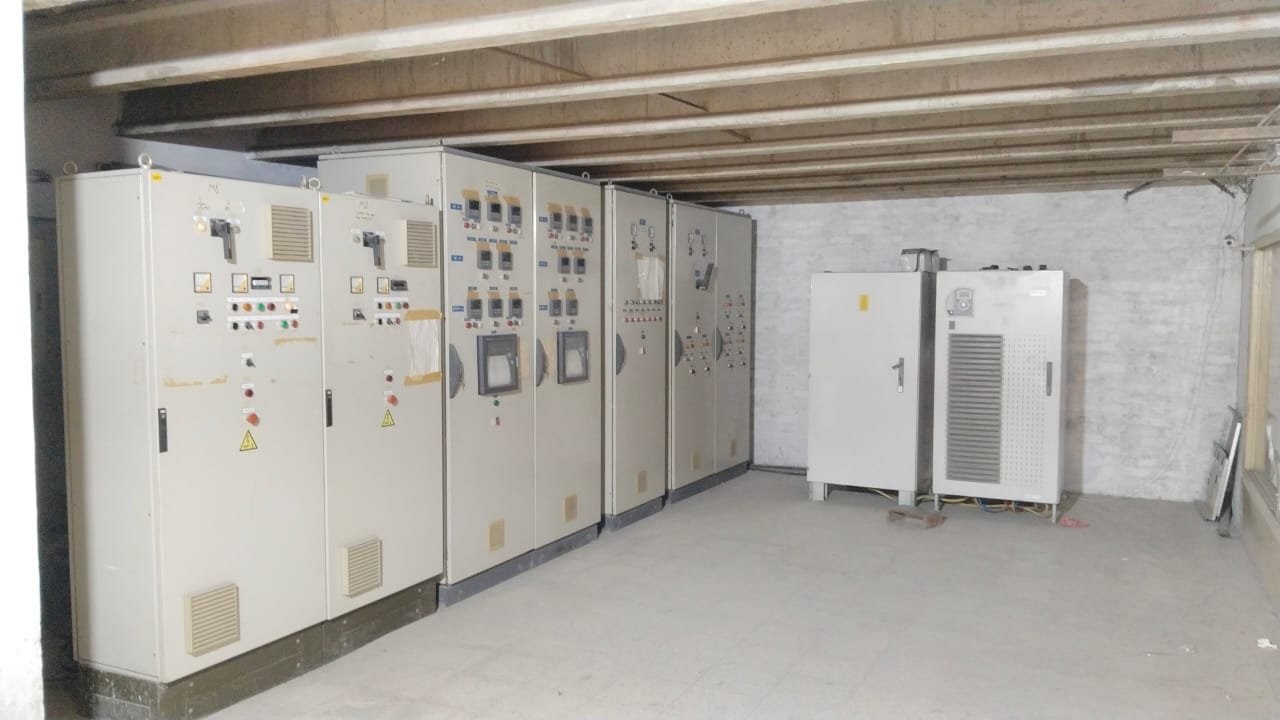

Electrical control and power cabinets of the float glass plant — Electrical control and power cabinets

Relocation and start-up

Buying used is only half the job. Tahir Jamal Khawaja MIET brings 35+ years in float glass, including as Managing Director of a float glass operation, and can manage the whole move: dismantling, transport, reassembly and start-up. Read the article: Buying a used float glass plant: what to check, and what moving it really involves.

Enquiries

Email tj@tjindustrial.co.uk or message Tahir Jamal Khawaja MIET on LinkedIn. Price on application.
